WEISS WBL250LF-D Metal Lathe 10″ x 30″ Benchtop Brushless Lathe Variable Speed 50 – 2000 RPM 1.5HP (1100W) With 5″ 3-jaw Chuck & 2-Axis DRO
7″ true color LCD screen 2-Axis DRO system with magnetic scale
· Contactless magnetic scale measuring system get slim dimension which is simple to intall. It matches IP 67 protection degree and get excellent performance to resist the oil, dust, dirt., etc. The best choice to work under adverse condition.
· 2 Axis magnetic scales for longitudinal bed way and cross slide wayÂ
1. WEISS WBL250LF-D bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 10″ swing, 1″(26mm) spindle bore and 30″ between centers.

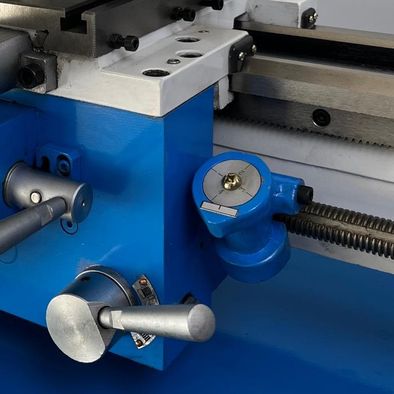

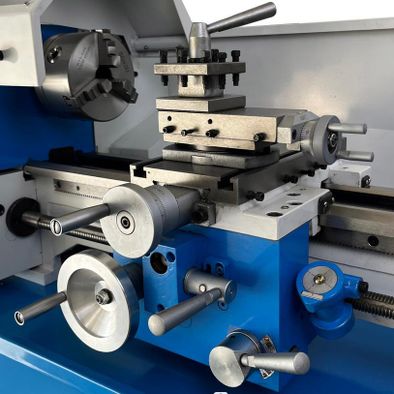

2. This lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate custs and finishes.
3. POWER CROSS FEED as well as feed on the carriage. Both in, out, left&right
4. Powerful 1.5HP Brushless Motor provide variable speeds from 50 – 2000 rpm.
5. Lead screws are true Inch pitch screws on cross slide, compound slide and tailstock for easy inch measurement readings.
6. 2-axis DRO system shows carriage travel and cross slide travel
7. WEISS Nanjing factory provides reliable quality, in time service and fast technical support
Want top quality from China with best price? Come to WEISS, you can get excellent value!
Technical Details
Model No. WBL250LF
· Distance between centers: 30″
· Swing over bed: 10″
· Swing over cross slide: 5-1/2″
· Bed width: 5-1/4″
· Spindle bore: 1″
· Spindle taper: MT#4
· Spindle speeds: 50-2000 RPM (Variable)
· Range of cross feeds: 0.0014-0.004″/rev.
· Range of longitudinal feeds: 0.0025-0.014″/rev.
· Inch thread range: (37) 8–80 TPI
· Metric thread range: (21) 0.35–3 mm

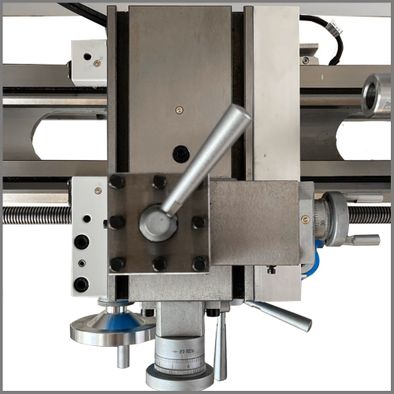

· Cross slide travel: 4-1/8″
· Compound rest travel: 2-3/4″
· Tailstock taper: MT#2
· Tailstock quill travel: 2-3/4″
· Motor type: Brushless 1.5HP
· Power supply: 110V/1Ph/60Hz
· Rated current: 10A
· Packing size: 59″ W × 22-5/8″ D × 24″ H
· Approx. shipping weight: 370 lbs.
Additional Information
· 5″ A type 3-jaw chuck with two sets of jaws
· Steady rest
· Follow rest
· Faceplate

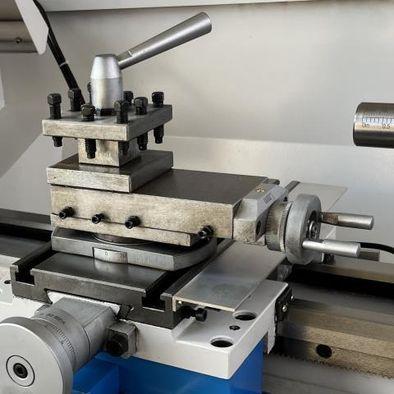

· 4-way tool post
· Chuck guard
· Splash guard & oil tray
· Chasing thread dail
· Replacement fuses
· MT#2 & MT#4 dead centers
· MT#2 living center
· Tool box with service tools
· 2-Axis 7″ LCD screen DRO
WBL250LF-D Machine come with: Steady Rest, Follow Rest, Faceplate, MT2 Living Center, Metal Toolbox&Tools, 2-Axis DRO
|
|
|
 |
7″ True Color LCD Screen 2-Axis DRO System with Magnetic Scale
Contactless magnetic scale measuring system get slim dimension which is simple to intall. It matches IP 67 protection degree and get excellent performance to resist the oil, dust, dirt., etc. The best choice to work under adverse condition.
|

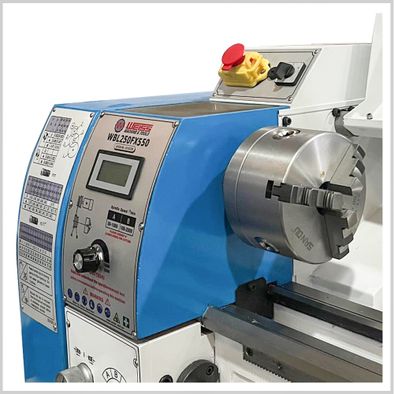

Headstock
※ Spindle is supported by high precision, Class 5, adjustable tapered roller bearings
※ Lathe digital speed readout tachometer on face of machine
※ Variable speed from 50-2000rpm
Electronic Driving System
※ The Machine has 1.5HP POWERFUL brushless motor with silent running
※ High quality electronics used throughout machine for long term reliability
※ Braking resistors increase the stability of the electrical system
※ Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users

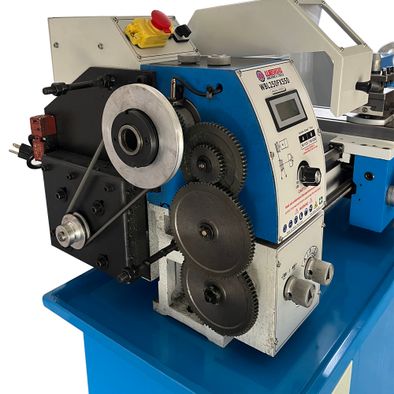

Change Gear
※The change gear cover is equipped with protective QKS8 door swtich
※The change gears are all metal gears, can provides 33 kinds of inch threads and 21 kinds of metric threads cutting
Gearbox
※Gearbox provides both right and left hand threads cutting.
※Gearbox provides 3 kinds of feeding speeds.
Tailstock
※The tailstock with quick lock handle.
※The tailstock lock system features a drive hub to ensure consistent draw-down alignment every time.

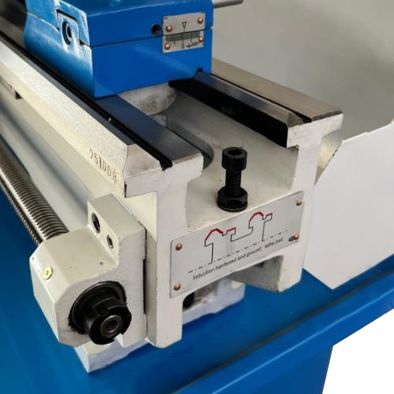

Guideway
※Guideway induction hardened and precision ground for long life

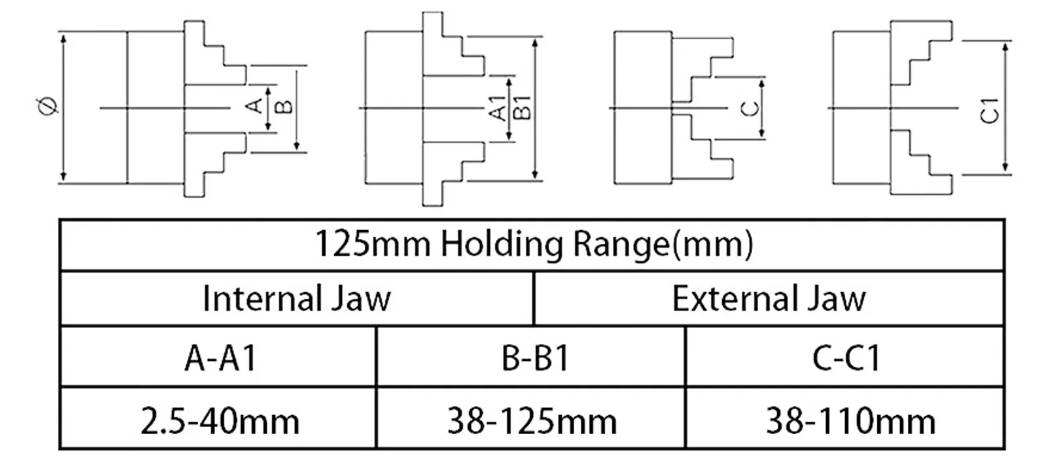

5″ 3-Jaw Self-centering Chuck
